Barb Arms

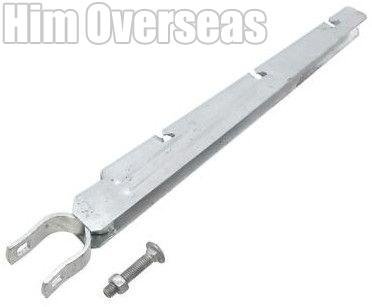

A pressed steel barb arm blade with female hinge is a specialized component used in chain link fencing systems, particularly for security enhancement and structural support. Here's how it's typically used:
Pressed Steel Barb Arm Blade: A flat or angled arm designed to hold barbed wire strands above the top rail of a chain link fence.
Female Hinge Connection: Allows the arm to be mounted securely to a post using a male hinge counterpart, enabling pivoting or fixed positioning.
Security Enhancement: Often installed at the top of fences in correctional facilities, industrial zones, or military areas.

Corner or Terminal Post Integration:

• Female hinge allows the arm to be attached to corner, end, or gate posts.
• Works with male hinges to create a secure and adjustable connection.

Angled or Vertical Mounting:

• Can be mounted vertically or at a 45° angle (inward or outward) depending on security needs.
• Some designs allow for multiple barbed wire configurations.

Durability and Weather Resistance: Made from galvanized pressed steel for corrosion resistance and long-term outdoor use.

Corner barb arm bases—casting type—are critical components in chain link fencing systems when barbed wire is added for perimeter security, especially at corner posts. Here's how they’re used and why they matter:

• Casting Corner Barb Arm is a rugged fence fitting designed to hold barbed wire at a 45° angle on corner posts of chain link fences.
• Made from casting process, it supports up to three strands of barbed wire for enhanced perimeter security.
• Ideal for high-security installations, and with our hot dip galvanizing finish ,it offers durability and resistance to rust and harsh weather conditions.
• We offer both Single and Double Arms

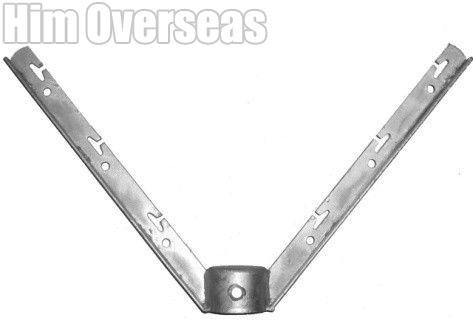

Pressed steel corner barb arms (T-type) are essential fittings in chain link fencing systems, especially where added security is required. Here's how they're typically used:

• Barbed Wire Extension: These arms are designed to hold multiple strands of barbed wire—typically three or six—at a 45-degree angle from the top of corner or terminal posts.
• Dual-Direction Barbed Wire Support: These arms are designed to extend barbed wire in two perpendicular directions from a corner post—perfect for fencing that turns at a 90° angle
• Corner Applications: The T-type configuration is ideal for corner posts, allowing barbed wire to extend in two directions, maintaining perimeter security at fence junctions.
• High-Security Installations: Commonly used in commercial, industrial, and correctional facilities where deterrence is critical.
• Corrosion Resistance Often galvanized, these arms resist rust and environmental wear, ideal for outdoor use.
• Slide over terminal posts and secure with set screws.
• Can be added to existing fences to upgrade security without major structural changes

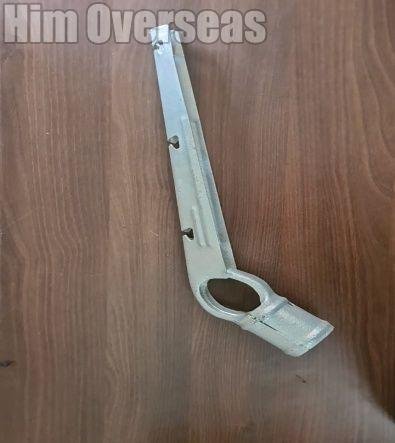

Pressed steel one-piece barb wire arms at 45 degrees—both single and double types—are essential components in chain link fencing systems designed for enhanced security. These are also called Extension arms. Here's how each type is used:

• Creates an angled deterrent against climbing, extending barbed wire at a 45° outward angle from fence posts.
• Enhances security on straight fence runs when installed on line posts.
• Strengthens corners or ends when used on terminal or corner posts (double-arm variant).
• Secured with set screws or brace bands—no welding required.
• Often galvanized or powder-coated, these arms resist rust and environmental wear, ideal for outdoor use.

Pressed steel one-piece barb wire arms at 45 degrees—both single and double types—are essential components in chain link fencing systems designed for enhanced security. These are also called Extension arms. Here's how each type is used:

• Creates an angled deterrent against climbing, extending barbed wire at a 45° outward angle from fence posts.
• Enhances security on straight fence runs when installed on line posts.
• Strengthens corners or ends when used on terminal or corner posts (double-arm variant).
• Secured with set screws or brace bands—no welding required.
• Often galvanized or powder-coated, these arms resist rust and environmental wear, ideal for outdoor use.

Pressed steel one-piece barb wire arms at 45 degrees—both single and double types—are essential components in chain link fencing systems designed for enhanced security. These are also called Extension arms. Here's how each type is used:

• Creates an angled deterrent against climbing, extending barbed wire at a 45° outward angle from fence posts.
• Enhances security on straight fence runs when installed on line posts.
• Strengthens corners or ends when used on terminal or corner posts (double-arm variant).
• Secured with set screws or brace bands—no welding required.
• Often galvanized or powder-coated, these arms resist rust and environmental wear, ideal for outdoor use.

Pressed steel corner barb arms (T-type) are essential fittings in chain link fencing systems, especially where added security is required. Here's how they're typically used:

• Barbed Wire Extension: These arms are designed to hold multiple strands of barbed wire—typically three or six—at a 45-degree angle from the top of corner or terminal posts.
• Dual-Direction Barbed Wire Support: These arms are designed to extend barbed wire in two perpendicular directions from a corner post—perfect for fencing that turns at a 90° angle
• Corner Applications: The T-type configuration is ideal for corner posts, allowing barbed wire to extend in two directions, maintaining perimeter security at fence junctions.
• High-Security Installations: Commonly used in commercial, industrial, and correctional facilities where deterrence is critical.
• Corrosion Resistance Often galvanized, these arms resist rust and environmental wear, ideal for outdoor use.
• Slide over terminal posts and secure with set screws.
• Can be added to existing fences to upgrade security without major structural changes
